  • Ants: Both Solid-like and Liquid-like

Science and Technology

Ants: Both Solid-like and Liquid-like

Ants act like ketchup when forces applied

October 26, 2015 • Atlanta, GA

When a penny is dropped into a collection of ants, the insects allow it to flow through them and self-assemble again after the coin passes.

Collections of ants have a remarkable ability to change shapes and tasks based on the demands of their environment. When floodwaters hit, they self-assemble and form rafts to stay alive. They can also use their bodies to build bridges and span gaps. What are the properties of these ant aggregations that allow for this wide range of abilities? New research from the Georgia Institute of Technology says it’s because the insects are actually liquid-like and solid-like simultaneously. The study is currently published in Nature Materials.

The Georgia Tech group probed the mechanical properties of fire ant aggregations by putting thousands of ants into a rheometer, a machine used to test the solid-like and liquid-like response of materials such as food, hand cream or melted plastic.

The ants were sheared at constant speeds from about 0.0001 rpm up to about 100 rpm. The researchers found that the behavior of live ants was similar to that of dead ants: when the aggregation is forced to flow, live ants let go and play dead. In this case, the viscosity dramatically decreased as the speed increased.

“It’s not unlike ketchup,” said Alberto Fernandez-Nieves, an associate professor in the School of Physics. “The harder you squeeze, the easier it flows. But with ants, this happens much more dramatically than with ketchup.”

“Ants seem to have an on/off switch in that they let go for sufficiently large applied forces,” said David Hu, an associate professor in the George W. Woodruff School of Mechanical Engineering. “Despite wanting to be together, they let go and behave like a fluid to prevent getting injured or killed.”

This same behavior can be seen by dropping a penny through an ant aggregation. Ants will flow around the coin as it sinks through the aggregation. This flow takes a relatively long time to happen. However, when the aggregation is poked quickly, it responds like a spring and returns to its original shape.

“This is the hallmark of viscoelastic behavior,” said Fernandez-Nieves. “The ants exhibit a springy-response when probed at short times, but behave fluid-like at longer times.”

The group quantified this by looking at the ants’ response to tiny wiggles of the rheometer. They found that the ants are equally liquid-like and solid-like. They did the same experiment with dead ants and saw that they are also solid-like. This showed that live ants are liquid-like and solid-like because of their activity.

“Remarkably, the observed behavior is similar to what is seen in materials that are not alive, like polymer gels right at the point when they become a gel,” said Fernandez-Nieves. “This is quite puzzling, and we are now performing many more experiments to try and understand where these similarities arise from and how much they can be pushed. Doing this will hopefully extend our current way of thinking about materials, that like the ants, are active and thus out-of-equilibrium. There is much more interesting work we plan on doing with ants.”

Hu has studied ant behavior for nearly 10 years. Fernandez-Nieves is a physicist who uses rheology to understand the mechanics of soft materials and unravel the microscopic origin of their overall properties and behaviors.

Michael Tennenbaum, a graduate research assistant who participated in the study, also compared the behavior of the ant aggregation to jello.

“Imagine if you wanted to make the most jello possible out of a packet of gelatin. It would be solid, but also very liquidy,” he said. “That’s because there would be just barely enough gelatin to make it solid-like but not enough to make it completely solid. The jello would be both solid-like and liquid-like.”

Hu has also used the liquid-like nature of the ants to study self-healing materials.

“If you cut a dinner roll with a knife, you’re going to end up with two pieces of bread,” said Hu. “But if you cut through a pile of ants, they’ll simply let the knife go through, then reform on the other side. They’re like liquid metal – just like that scene in the Terminator movie.”

Hu says it’s this flexibility that allows ants to enjoy the best of both worlds. They’re able to become solids to make things and liquids to avoid breaking into “smithereens.”

The study, “Mechanics of Ant Aggregations,” was published in Nature Materials on October 26, 2015.

This research is supported by the U.S. Army Research Laboratory and the U.S. Army Research Office Mechanical Sciences Division, Complex Dynamics and Systems Program, under contract numbers W911NF-12-R-0011 and W911NF-14-1-0487. Any conclusions expressed are those of the principal investigator and may not necessarily represent the official views of the funding organization.

ADDITIONAL PHOTOS AND VIDEO ARE AVAILABLE HERE: https://www.dropbox.com/sh/hycnwywaxdeau60/AAAHt79dAvREDICnt3nL4nlba?dl=0

Additional Videos

Georgia Tech Associate Professor David Hu explains how collections of ants can change their shapes and actions based on their environments.

Additional Photos

  • Ants in Rheometer

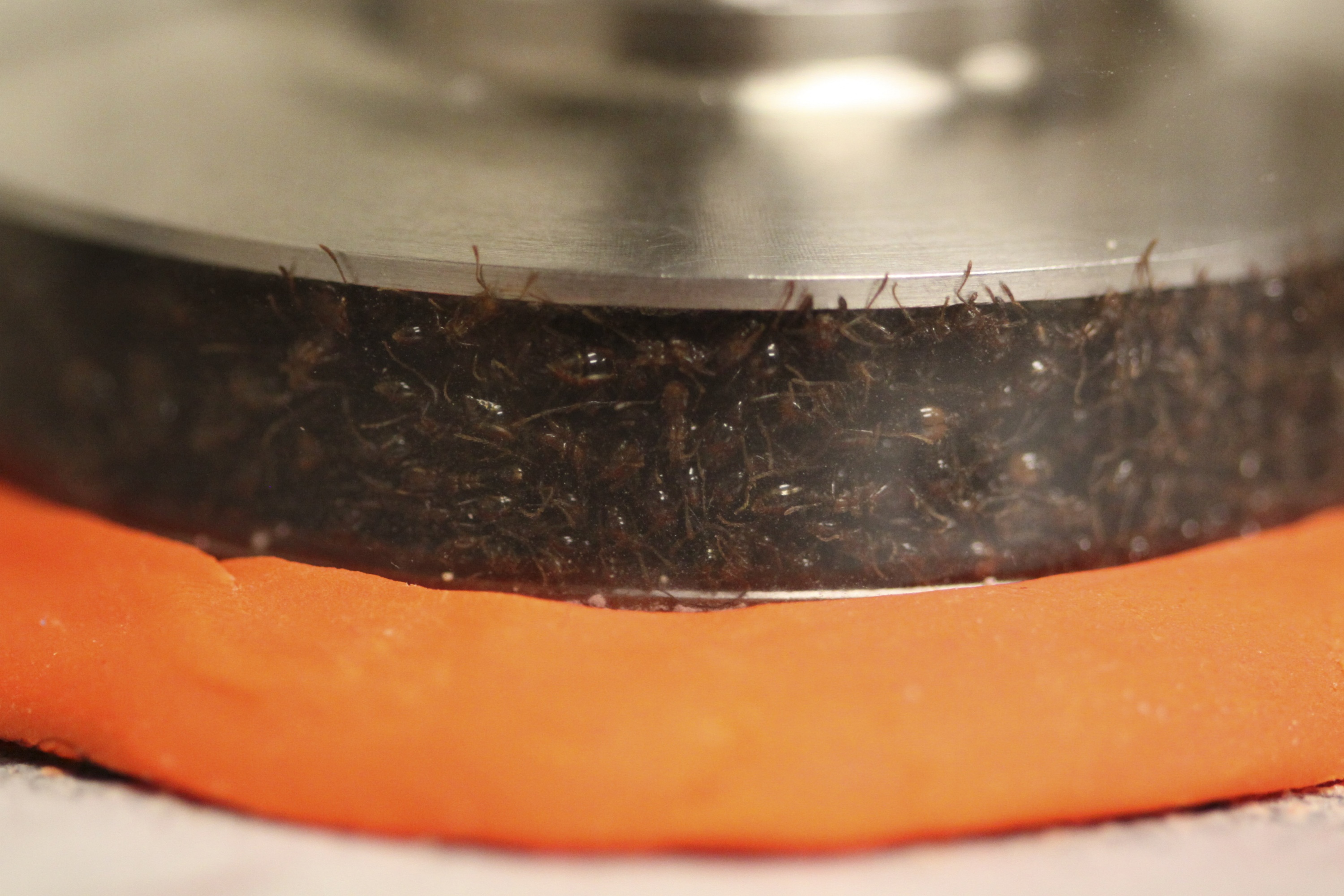

    Ants in Rheometer

    Ants were put in a rheometer, a machine used to test the solid-like and liquid-like response of materials such as food, hand cream or melted plastic.

    Download Image
  • David Hu


    David Hu

    David Hu is a professor in the George W. Woodruff School of Mechanical Engineering and the School of Biological Sciences.

    Download Image
  • Alberto Fernandez-Nieves


    Alberto Fernandez-Nieves

    Alberto-Fernandez Nieves is an associate professor in the School of Physics.

    Download Image
